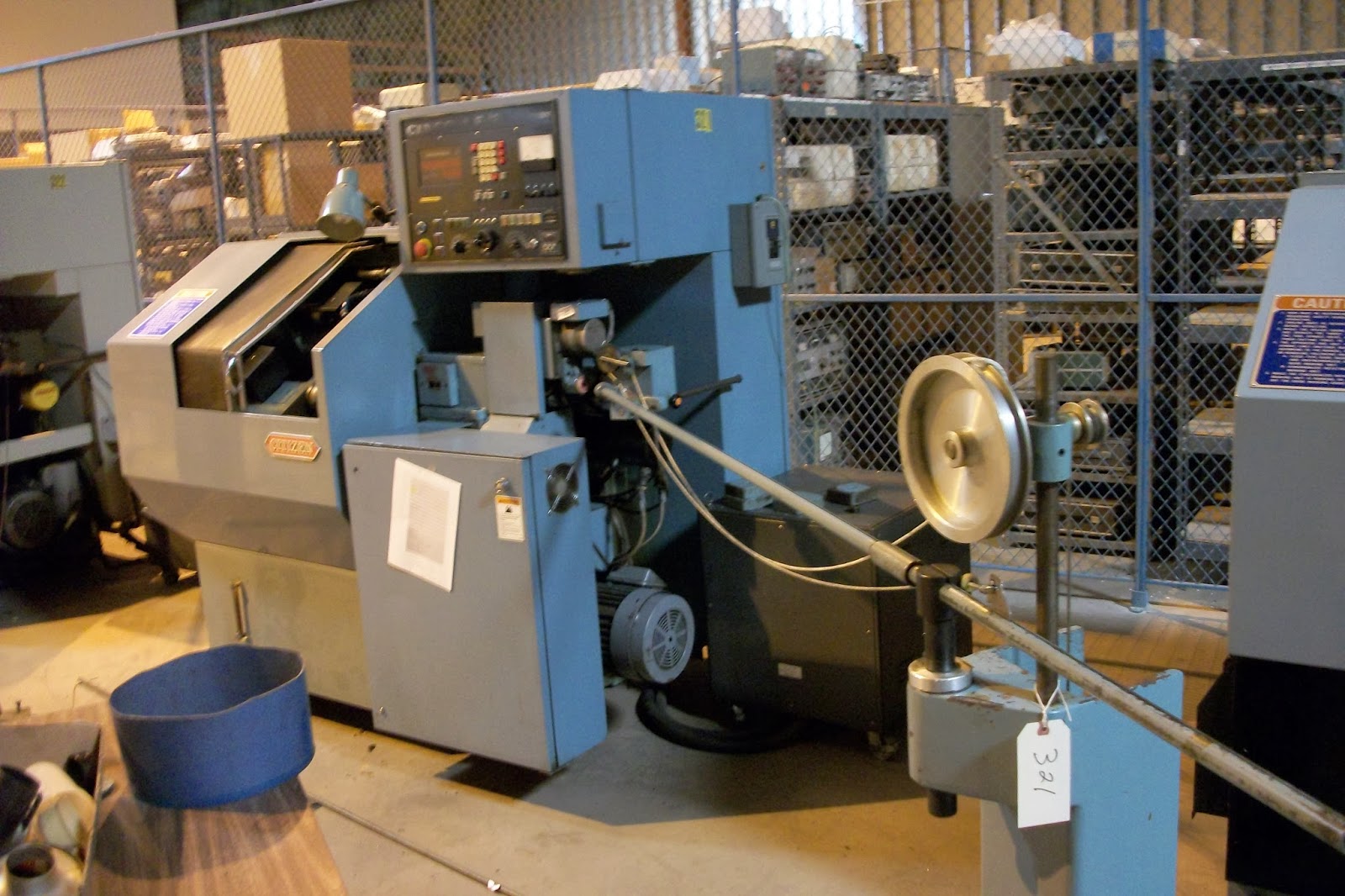

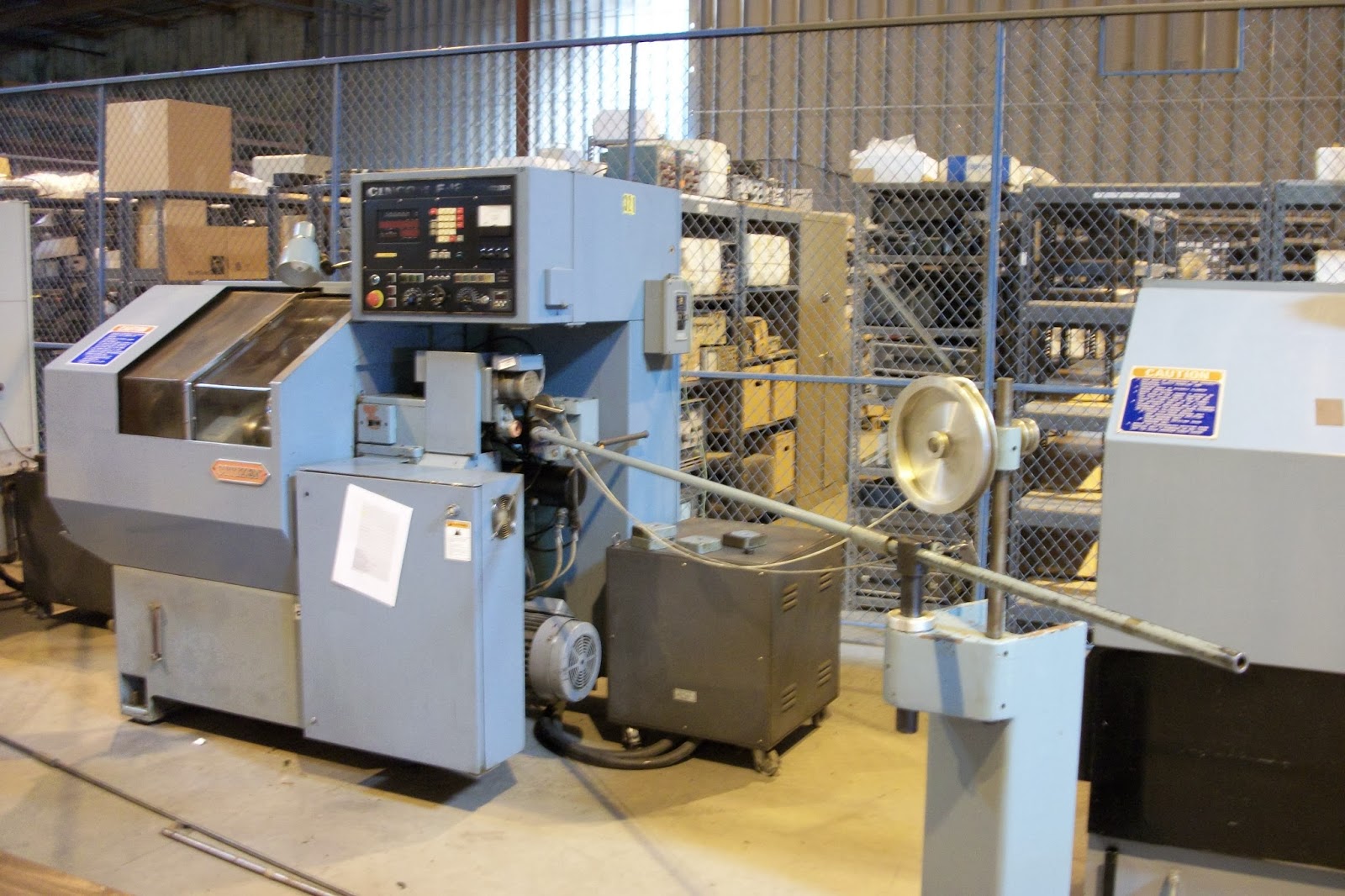

Citizen Cincom F-12 With Bar Feed CNC Swiss – Type Automatic Screw Machine (A321)

Citizen Cincom F-12 With Bar Feed CNC Swiss – Type Automatic Screw Machine (A321)

Reference #: A321

Manufacturer: Citizen Cincom

Year: 1982

M/N: F-12 with Bar Feed

S/N: 631

Description: CNC Swiss Type Automatic Screw Machine

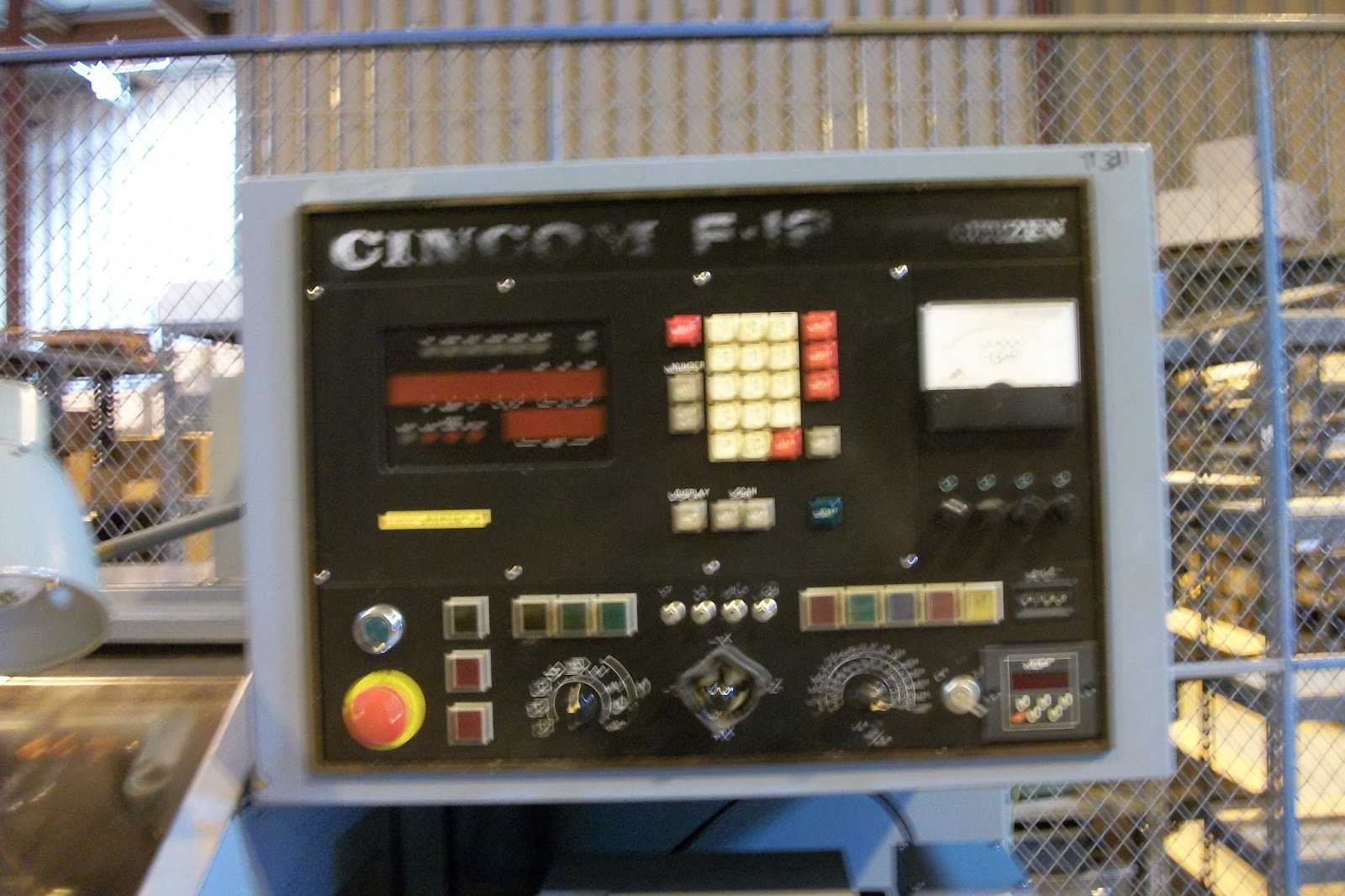

CNC Control: Fanuc 3TC
Maximum Working Dia.: 0.50″
Minimum Working Dia.: 0.0.2″
Maximum Length Per Chucking: 4.92″
Number Of Tool Stations; 10, (2) 5-Pos Turretb,
Main Spindle Speeds (RPM): 220/1000
Spindle Speeds Rotary Tools
Low Speed Turret: 200 – 1000 RPM,
High Speed Turret: 300 – 6400 RPM,
Maximum Drilling Diameter: 0.315″,
Maximum Feed Rate: 200″ Per Minutes,
Rapid Traverse X and A Axes (IPM): 390″ Per Minute,
Minimum Indexing Increment Of Main,
Spindle: 1 DEG, Pulse,
Minimum Input Increment: 0.00004″,
Main Spindle Motor (30 Min. Rating/Cont.): 7.3HP/5HP,
Guide Bushing Holder: Synchronous Rotary,
Approx Maching DIa.: 6ft x 4-1/2ft x 6ft x 4″,
Approx Weight: 5100 LBS,
